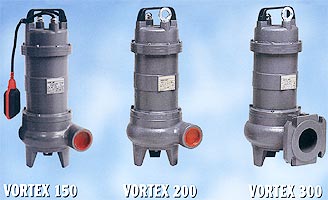

VORTEX PUMPS
Submersible pumps, based on the vortex principle,
suitable for the pumping of rain and sewage water.
Heavy duty construction. Pump body, cover and support
in cast iron. Back and open type impeller in cast
iron. Oil bathed motor with built-in motor protector.
Shaft in stainless steel.
The above larger vortex pumps are suitable for pumpsing
slurry with solid parts. They are particulary recommended
for domestic waste water plants, for industrial water
treatment and for a lot of agricultural uses.
|
Model |
HP |
Discharge
Diameter |
Solid
Parts dia. |
l/min
at 2m |
l/min
at 4m |
l/min
at 6m |
l/min
at 8m |
l/min
at 10m |
l/min
at 12m |
|
|
|
|
|
|
|
|
|
|
|
|
75 |
0.75 |
1.25" |
30mm |
221 |
180 |
120 |
40 |
|
|
|
100 |
100 |
1.5" |
38mm |
300 |
230 |
150 |
50 |
|
|
|
150 |
1.5 |
2" |
50mm |
450 |
350 |
240 |
120 |
|
|
|
200 |
2 |
2" |
50mm |
600 |
480 |
350 |
200 |
30 |
|
|
300 |
3 |
3" |
55mm |
750 |
650 |
505 |
330 |
140 |
|
|
400a |
4 |
3" |
75mm |
1000 |
900 |
750 |
540 |
300 |
30 |
|
400 |
4 |
4" |
80mm |
|
1750 |
|
1250 |
|
450 |
|
550 |
5.5 |
4" |
100mm |
|
3000 |
|
2250 |
|
1250 |
-
PLEASE CONTACT US ABOUT ANY OF THE ABOVE MODELS
-
|
